PDG2018, passage of particles through matter. More...

#include <BetheBlochPDG.hpp>

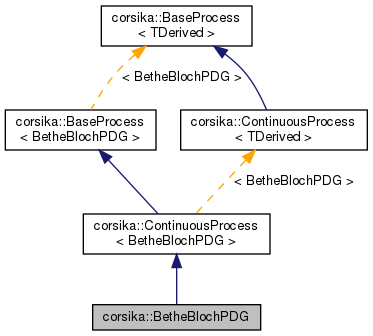

Inheritance diagram for corsika::BetheBlochPDG:

[legend]

Public Member Functions
	BetheBlochPDG (ShowerAxis const &showerAxis)

template<typename TParticle , typename TTrajectory >
ProcessReturn	doContinuous (TParticle &particle, TTrajectory const &track, bool const limitFlag)
	clang-format-off Interface function of ContinuousProcess. More...

template<typename TParticle , typename TTrajectory >
LengthType	getMaxStepLength (TParticle const &, TTrajectory const &) const

void	showResults () const

void	reset ()

HEPEnergyType	getEnergyLost () const

void	printProfile () const

HEPEnergyType	getTotal () const

Additional Inherited Members
Public Types inherited from corsika::BaseProcess< BetheBlochPDG >
using	process_type = BetheBlochPDG
	Base processor type for use in other template classes.

Static Public Attributes inherited from corsika::BaseProcess< BetheBlochPDG >
static bool const	is_process_sequence

static bool const	is_switch_process_sequence

Protected Member Functions inherited from corsika::BaseProcess< BetheBlochPDG >
BetheBlochPDG &	ref ()

const BetheBlochPDG &	ref () const

Protected Attributes inherited from corsika::BaseProcess< BetheBlochPDG >
friend	TDerived

Detailed Description

PDG2018, passage of particles through matter.

Note, that \(I_{\mathrm{eff}}\) of composite media a determined from \( \ln I = \sum_i a_i \ln(I_i) \) where \( a_i \) is the fraction of the electron population ( \(\sim Z_i\)) of the \(i\)-th element. This can also be used for shell corrections or density effects.

The \(I_{\mathrm{eff}}\) of compounds is not better than a few percent, if not measured explicitly.

For shell correction, see Sec 6 of https://www.nap.edu/read/20066/chapter/8#115

Definition at line 36 of file BetheBlochPDG.hpp.

Member Function Documentation

◆ doContinuous()

template<typename TParticle , typename TTrajectory >

ProcessReturn corsika::BetheBlochPDG::doContinuous	(	TParticle &	particle,
		TTrajectory const &	track,
		bool const	limitFlag
	)

clang-format-off Interface function of ContinuousProcess.

Parameters

particle	The particle to process in its current state
track	The trajectory in space of this particle, on which doContinuous should act
limitFlag	flag to identify, if BetheBlochPDG::getMaxStepLength is the globally limiting factor (or not) clang-format-on

The documentation for this class was generated from the following file:

corsika/modules/energy_loss/BetheBlochPDG.hpp
