 Definition of a static process list/sequence

More...

#include <ProcessSequence.hpp>

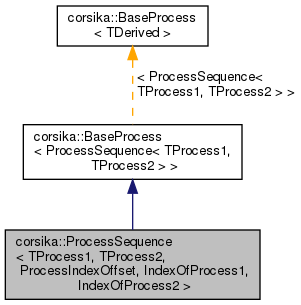

Inheritance diagram for corsika::ProcessSequence< TProcess1, TProcess2, ProcessIndexOffset, IndexOfProcess1, IndexOfProcess2 >:

[legend]

Public Member Functions
	ProcessSequence (ProcessSequence const &)=default

	ProcessSequence (ProcessSequence &&)=default

ProcessSequence &	operator= (ProcessSequence const &)=default

	ProcessSequence (TProcess1 in_A, TProcess2 in_B)
	Only valid user constructor will create fully initialized object. More...

template<typename TParticle >
ProcessReturn	doBoundaryCrossing (TParticle &particle, typename TParticle::node_type const &from, typename TParticle::node_type const &to)

template<typename TParticle , typename TTrack >
ProcessReturn	doContinuous (TParticle &particle, TTrack &vT, ContinuousProcessIndex const limitID)

template<typename TSecondaries >
void	doSecondaries (TSecondaries &vS)

bool	checkStep ()
	The processes of type StackProcess do have an internal counter, so they can be exectuted only each N steps. More...

template<typename TStack >
void	doStack (TStack &stack)
	Execute the StackProcess-es in the ProcessSequence.

template<typename TParticle , typename TTrack >
ContinuousProcessStepLength	getMaxStepLength (TParticle &particle, TTrack &vTrack)
	Calculate the maximum allowed length of the next tracking step, based on all ContinuousProcess-es. More...

template<typename TParticle >
GrammageType	getInteractionLength (TParticle &&particle)

template<typename TParticle >
InverseGrammageType	getInverseInteractionLength (TParticle &&particle)

template<typename TSecondaryView >
ProcessReturn	selectInteraction (TSecondaryView &view, [[maybe_unused]] InverseGrammageType lambda_inv_select, [[maybe_unused]] InverseGrammageType lambda_inv_sum=InverseGrammageType::zero())

template<typename TParticle >
TimeType	getLifetime (TParticle &particle)

template<typename TParticle >
InverseTimeType	getInverseLifetime (TParticle &&particle)

template<typename TSecondaryView >
ProcessReturn	selectDecay (TSecondaryView &view, [[maybe_unused]] InverseTimeType decay_inv_select, [[maybe_unused]] InverseTimeType decay_inv_sum=InverseTimeType::zero())

Static Public Attributes
static bool const	is_process_sequence = true

Static Public Attributes inherited from corsika::BaseProcess< ProcessSequence< TProcess1, TProcess2 > >
static bool const	is_process_sequence

static bool const	is_switch_process_sequence

Additional Inherited Members
Public Types inherited from corsika::BaseProcess< ProcessSequence< TProcess1, TProcess2 > >
using	process_type = ProcessSequence< TProcess1, TProcess2 >
	Base processor type for use in other template classes.

Protected Member Functions inherited from corsika::BaseProcess< ProcessSequence< TProcess1, TProcess2 > >
ProcessSequence< TProcess1, TProcess2 > &	ref ()

const ProcessSequence< TProcess1, TProcess2 > &	ref () const

Protected Attributes inherited from corsika::BaseProcess< ProcessSequence< TProcess1, TProcess2 > >
friend	TDerived

Detailed Description

template<typename TProcess1, typename TProcess2 = NullModel, int ProcessIndexOffset = 0, int IndexOfProcess1 = corsika::count_processes< TProcess1, corsika::count_processes<TProcess2, ProcessIndexOffset>::count>::count, int IndexOfProcess2 = corsika::count_processes<TProcess2, ProcessIndexOffset>::count>
class corsika::ProcessSequence< TProcess1, TProcess2, ProcessIndexOffset, IndexOfProcess1, IndexOfProcess2 >

 Definition of a static process list/sequence

A compile time static list of processes. The compiler will generate a new type based on template logic containing all the elements provided by the user.

TProcess1 and TProcess2 must both be derived from BaseProcess, and are both references if possible (lvalue), otherwise (rvalue) they are just classes. This allows us to handle both, rvalue as well as lvalue Processes in the ProcessSequence.

(For your potential interest, the static version of the ProcessSequence and all Process types are based on the CRTP C++ design pattern)

Template parameters:

Template Parameters

TProcess1	is of type BaseProcess, either a dedicatd process, or a ProcessSequence
TProcess2	is of type BaseProcess, either a dedicatd process, or a ProcessSequence
IndexFirstProcess	to count and index each Process in the entire process-chain. The offset is the starting value for this ProcessSequence
IndexOfProcess1	index of TProcess1 (counting of Process)
IndexOfProcess2	index of TProcess2 (counting of Process)

Definition at line 157 of file ProcessSequence.hpp.

Constructor & Destructor Documentation

◆ ProcessSequence()

template<typename TProcess1, typename TProcess2 = NullModel, int ProcessIndexOffset = 0, int IndexOfProcess1 = corsika::count_processes< TProcess1, corsika::count_processes<TProcess2, ProcessIndexOffset>::count>::count, int IndexOfProcess2 = corsika::count_processes<TProcess2, ProcessIndexOffset>::count>

corsika::ProcessSequence< TProcess1, TProcess2, ProcessIndexOffset, IndexOfProcess1, IndexOfProcess2 >::ProcessSequence	(	TProcess1	in_A,
		TProcess2	in_B
	)

Only valid user constructor will create fully initialized object.

ProcessSequence supports and encourages move semantics. You can use object, l-value references or r-value references to construct sequences.

Parameters

in_A	BaseProcess or switch/process list
in_B	BaseProcess or switch/process list

Member Function Documentation

◆ checkStep()

template<typename TProcess1, typename TProcess2 = NullModel, int ProcessIndexOffset = 0, int IndexOfProcess1 = corsika::count_processes< TProcess1, corsika::count_processes<TProcess2, ProcessIndexOffset>::count>::count, int IndexOfProcess2 = corsika::count_processes<TProcess2, ProcessIndexOffset>::count>

bool corsika::ProcessSequence< TProcess1, TProcess2, ProcessIndexOffset, IndexOfProcess1, IndexOfProcess2 >::checkStep ( )

The processes of type StackProcess do have an internal counter, so they can be exectuted only each N steps.

Often these are "maintenacne processes" that do not need to run after each single step of the simulations. In the CheckStep function it is tested if either A_ or B_ are StackProcess and if they are due for execution.

◆ getMaxStepLength()

template<typename TProcess1, typename TProcess2 = NullModel, int ProcessIndexOffset = 0, int IndexOfProcess1 = corsika::count_processes< TProcess1, corsika::count_processes<TProcess2, ProcessIndexOffset>::count>::count, int IndexOfProcess2 = corsika::count_processes<TProcess2, ProcessIndexOffset>::count>

template<typename TParticle , typename TTrack >

ContinuousProcessStepLength corsika::ProcessSequence< TProcess1, TProcess2, ProcessIndexOffset, IndexOfProcess1, IndexOfProcess2 >::getMaxStepLength	(	TParticle &	particle,
		TTrack &	vTrack
	)

Calculate the maximum allowed length of the next tracking step, based on all ContinuousProcess-es.

The maximum allowed step length is the minimum of the allowed track lenght over all ContinuousProcess-es in the ProcessSequence.

Returns: ContinuousProcessStepLength which contains the step length itself in LengthType, and a unique identifier of the related ContinuousProcess.

The documentation for this class was generated from the following file:

corsika/framework/process/ProcessSequence.hpp
