corsika::CoREAS< TRadioDetector, TPropagator > Class Template Reference

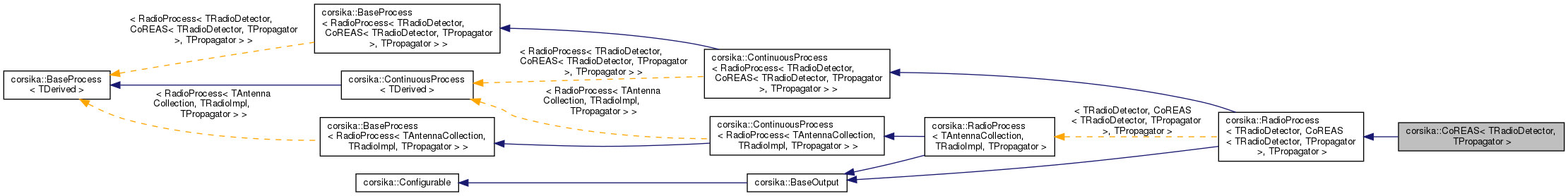

Inheritance diagram for corsika::CoREAS< TRadioDetector, TPropagator >:

Public Types
using	Base = RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator >
Public Types inherited from corsika::RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator >
using	axistype = std::vector< long double >
Public Types inherited from corsika::BaseProcess< RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > >
using	process_type = RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator >
	Base processor type for use in other template classes.

Public Member Functions
template<typename... TArgs>
	CoREAS (TRadioDetector &detector, TArgs &&... args)
	Construct a new CoREAS instance. More...
template<typename Particle >
ProcessReturn	simulate (Step< Particle > const &step)
	Simulate the radio emission from a particle across a track. More...
Public Member Functions inherited from corsika::RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator >
	RadioProcess (TRadioDetector &antennas, TPropagator &propagator)
	Construct a new RadioProcess.
ProcessReturn	doContinuous (Step< Particle > const &step, bool const)
	Perform the continuous process (radio emission). More...
LengthType	getMaxStepLength (Particle const &vParticle, Track const &vTrack) const
	Return the maximum step length for this particle and track. More...
void	startOfLibrary (boost::filesystem::path const &directory) final override
	Called at the start of each library.
virtual void	endOfShower (unsigned int const) final override
	Called at the end of each shower.
void	endOfLibrary () final override
	Called at the end of each library.
YAML::Node	getConfig () const final
	Get the configuration of this output.
Public Member Functions inherited from corsika::BaseOutput
virtual void	startOfShower (unsigned int const)
	Called at the start of each event/shower. More...
bool	isInit () const
	Flag to indicate readiness.
virtual YAML::Node	getSummary () const
	Provide YAML Summary for this BaseOutput.

Static Public Attributes
static constexpr auto	algorithm = "CoREAS"
static constexpr auto	emConstant_
Static Public Attributes inherited from corsika::BaseProcess< RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > >
static bool const	is_process_sequence
static bool const	is_switch_process_sequence

Additional Inherited Members
Protected Member Functions inherited from corsika::BaseProcess< RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > >
RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > &	getRef ()
const RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > &	getRef () const
Protected Member Functions inherited from corsika::BaseOutput
void	setInit (bool const v)
	Set init flag.
Protected Attributes inherited from corsika::RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator >
TRadioDetector &	antennas_
	The radio antennas we store into.
TPropagator	propagator_
	The propagator implementation.
unsigned int	showerId_
	The current event ID.
ParquetStreamer	output_
	The parquet streamer for this process.
Protected Attributes inherited from corsika::BaseProcess< RadioProcess< TRadioDetector, CoREAS< TRadioDetector, TPropagator >, TPropagator > >
friend	TDerived

Detailed Description

template<typename TRadioDetector, typename TPropagator>
class corsika::CoREAS< TRadioDetector, TPropagator >

Definition at line 17 of file CoREAS.hpp.

Constructor & Destructor Documentation

CoREAS()

template<typename TRadioDetector , typename TPropagator >

template<typename... TArgs>

corsika::CoREAS< TRadioDetector, TPropagator >::CoREAS ( TRadioDetector &  detector, TArgs &&...  args  )

inline

Construct a new CoREAS instance.

This forwards the detector and other arguments to the RadioProcess parent.

Definition at line 33 of file CoREAS.hpp.

Member Function Documentation

simulate()

template<typename TRadioDetector , typename TPropagator >

template<typename Particle >

ProcessReturn corsika::CoREAS< TRadioDetector, TPropagator >::simulate

(

Step< Particle > const &

step

)

Simulate the radio emission from a particle across a track.

This must be provided by the TRadioImpl.

Parameters

particle	The current particle.
track	The current track.

Member Data Documentation

emConstant_

template<typename TRadioDetector , typename TPropagator >

constexpr auto corsika::CoREAS< TRadioDetector, TPropagator >::emConstant_

static

Initial value:

{1.0 / (4.0 * M_PI) / (constants::epsilonZero) /
                                      constants::c}

Definition at line 47 of file CoREAS.hpp.

---

The documentation for this class was generated from the following file:

• corsika/modules/radio/CoREAS.hpp
