corsika::ObservationPlane< TTracking, TOutput > Class Template Reference

The ObservationPlane writes PDG codes, energies, and distances of particles to the central point of the plane into its output file. More...

#include <ObservationPlane.hpp>

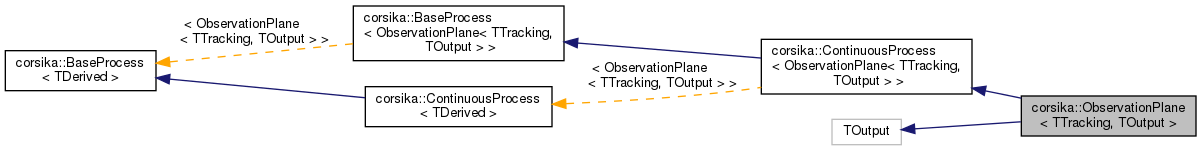

Inheritance diagram for corsika::ObservationPlane< TTracking, TOutput >:

Public Member Functions
template<typename... TArgs>
	ObservationPlane (Plane const &plane, DirectionVector const &x_dir, bool const absorbing=true, TArgs &&... outputArgs)
	Construct a new Observation Plane object. More...
template<typename TParticle >
ProcessReturn	doContinuous (Step< TParticle > &, bool const stepLimit)
template<typename TParticle , typename TTrajectory >
LengthType	getMaxStepLength (TParticle const &, TTrajectory const &vTrajectory)
YAML::Node	getConfig () const

Additional Inherited Members
Public Types inherited from corsika::BaseProcess< ObservationPlane< TTracking, TOutput > >
using	process_type = ObservationPlane< TTracking, TOutput >
	Base processor type for use in other template classes.
Static Public Attributes inherited from corsika::BaseProcess< ObservationPlane< TTracking, TOutput > >
static bool const	is_process_sequence
static bool const	is_switch_process_sequence
Protected Member Functions inherited from corsika::BaseProcess< ObservationPlane< TTracking, TOutput > >
ObservationPlane< TTracking, TOutput > &	getRef ()
const ObservationPlane< TTracking, TOutput > &	getRef () const
Protected Attributes inherited from corsika::BaseProcess< ObservationPlane< TTracking, TOutput > >
friend	TDerived

Detailed Description

template<typename TTracking, typename TOutput = ParticleWriterParquet>
class corsika::ObservationPlane< TTracking, TOutput >

The ObservationPlane writes PDG codes, energies, and distances of particles to the central point of the plane into its output file.

By default, the particles are considered "absorbed" afterwards. You can also set the ObservationPlane as non-absorbing.

The default output format is parquet.

Note/Limitation: as discussed in https://gitlab.iap.kit.edu/AirShowerPhysics/corsika/-/issues/397 you cannot put two ObservationPlanes exactly on top of each other. Even if one of them is "permeable". You have to put a small gap in between the two plane in such a scenario, or develop another more specialized output class.

Definition at line 39 of file ObservationPlane.hpp.

Constructor & Destructor Documentation

ObservationPlane()

template<typename TTracking , typename TOutput = ParticleWriterParquet>

template<typename... TArgs>

corsika::ObservationPlane< TTracking, TOutput >::ObservationPlane	(	Plane const &	plane,
		DirectionVector const &	x_dir,
		bool const	absorbing = true,
		TArgs &&...	outputArgs
	)

Construct a new Observation Plane object.

Template Parameters

TArgs

Parameters

plane	The plane.
x_dir	The x-direction/axis.
absorbing	Flag to make the plane absorbing.
outputArgs

---

The documentation for this class was generated from the following file:

• corsika/modules/ObservationPlane.hpp
