SecondaryView can only be constructed by giving a valid Projectile particle, following calls to addSecondary will populate the original Stack, but will be directly accessible via the SecondaryView, e.g.StackViewPr. More...

#include <SecondaryView.hpp>

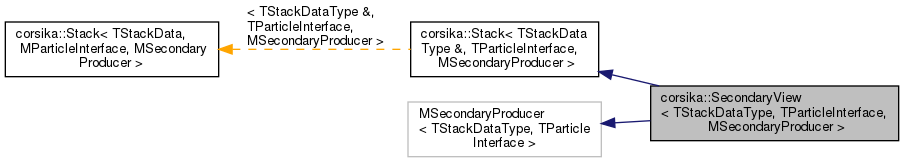

Inheritance diagram for corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >:

[legend]

Public Types
typedef SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >	view_type

typedef Stack< TStackDataType &, TParticleInterface, MSecondaryProducer >	inner_stack_reference_type
	Helper type for inside this class.

typedef StackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, view_type >	stack_view_iterator

typedef ConstStackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, view_type >	const_stack_view_iterator

using	ParticleType = stack_view_iterator
	this is the full type of the declared TParticleInterface:

using	ParticleInterfaceType = typename stack_view_iterator::particle_interface_type

We need this "value" types with non-reference TStackData for
the constructor of the SecondaryView class
typedef Stack< TStackDataType, TParticleInterface, MSecondaryProducer >	inner_stack_value_type

typedef StackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, inner_stack_value_type >	stack_value_iterator

typedef ConstStackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, inner_stack_value_type >	const_stack_value_iterator

Public Types inherited from corsika::Stack< TStackDataType &, TParticleInterface, MSecondaryProducer >
typedef TStackDataType &	stack_data_type
	this is the type of the user-provided data structure

typedef SecondaryView< TStackDataType &, TParticleInterface, MSecondaryProducer >	stack_view_type

using	pi_type = TParticleInterface< TStackIterator >

typedef StackIteratorInterface< value_type, TParticleInterface, MSecondaryProducer, Stack >	stack_iterator_type
	Via the StackIteratorInterface and ConstStackIteratorInterface specialization, the type of the stack_iterator_type template class is declared for a particular stack data object. More...

typedef ConstStackIteratorInterface< value_type, TParticleInterface, MSecondaryProducer, Stack >	const_stack_iterator_type

typedef stack_iterator_type::particle_interface_type	particle_interface_type
	this is the full type of the user-declared MParticleInterface

typedef stack_iterator_type	particle_type
	In all programming context, the object to access, copy, and transport particle data is via the stack_iterator_type.

Public Member Functions
template<typename... TArgs>
	SecondaryView (TArgs... args)=delete
	This is not accessible, since we don't want to allow creating a new stack.

	SecondaryView (stack_value_iterator &particle)
	SecondaryView can only be constructed passing it a valid stack_view_iterator to another Stack object (here: lvalue)

	inner_stack_ (particle.getStack())

	projectile_index_ (particle.getIndex())

	SecondaryView (stack_value_iterator &&particle)
	SecondaryView can only be constructed passing it a valid stack_view_iterator to another Stack object (here: rvalue)

	inner_stack_ (particle.getStack())

	projectile_index_ (particle.getIndex())

	SecondaryView (view_type &view, stack_view_iterator &projectile)
	Also allow to create a new View from a Projectile (stack_view_iterator on View) More...

unsigned int	getSize () const
	overwrite Stack::getSize to return actual number of secondaries

unsigned int	getEntries () const

bool	isEmpty () const

void	swap (stack_view_iterator a, stack_view_iterator b)

void	copy (stack_view_iterator a, stack_view_iterator b)

void	copy (const_stack_view_iterator a, stack_view_iterator b)

void	erase (stack_view_iterator p)
	need overwrite Stack::Delete, since we want to call SecondaryView::DeleteLast More...

stack_view_iterator	getNextParticle ()
	return next particle from stack, need to overwrtie Stack::getNextParticle to get right reference

bool	isErased (const stack_view_iterator &p) const
	check if this particle was already deleted More...

bool	isErased (const const_stack_view_iterator &p) const

bool	isErased (const ParticleInterfaceType &p) const
	delete this particle

bool	isDeleted (const const_stack_view_iterator &p) const

bool	purgeLastIfDeleted ()
	Function to ultimatively remove the last entry from the stack, if it was marked as deleted before. More...

void	purge ()
	Function to ultimatively remove all entries from the stack marked as deleted. More...

std::string	asString () const

These are functions required by std containers and std loops
The Stack-versions must be overwritten, since here we need the correct SecondaryView::getSize
stack_view_iterator	begin ()

stack_view_iterator	end ()

stack_view_iterator	last ()

const_stack_view_iterator	begin () const

const_stack_view_iterator	end () const

const_stack_view_iterator	last () const

const_stack_view_iterator	cbegin () const

const_stack_view_iterator	cend () const

const_stack_view_iterator	clast () const

stack_view_iterator	at (unsigned int i)

const_stack_view_iterator	at (unsigned int i) const

stack_view_iterator	first ()

const_stack_view_iterator	cfirst () const

Public Member Functions inherited from corsika::Stack< TStackDataType &, TParticleInterface, MSecondaryProducer >
	Stack ()
	create a new Stack, if there is already data associated prepare needed initialization.

	Stack (Stack &)=delete
	since Stack can be very big, we don't want to copy it

	Stack (TStackDataType & vD)
	if TStackData is a reference member we HAVE to initialize it in the constructor, this is typically needed for SecondaryView

	Stack (TArgs... args)
	This constructor takes any argument and passes it on to the TStackData user class. More...

Stack &	operator= (Stack &)=delete
	since Stack can be very big, we don't want to copy it

unsigned int	getCapacity () const

unsigned int	getErased () const

unsigned int	getEntries () const

void	clear (TArgs... args)

stack_iterator_type	begin ()

const_stack_iterator_type	begin () const

stack_iterator_type	end ()

const_stack_iterator_type	end () const

stack_iterator_type	last ()

const_stack_iterator_type	last () const

const_stack_iterator_type	cbegin () const

const_stack_iterator_type	cend () const

const_stack_iterator_type	clast () const

stack_iterator_type	at (unsigned int i)

const_stack_iterator_type	at (unsigned int i) const

stack_iterator_type	first ()

const_stack_iterator_type	cfirst () const

stack_iterator_type	getNextParticle ()

stack_iterator_type	addParticle (const TArgs... v)
	increase stack size, create new particle at end of stack

void	swap (stack_iterator_type a, stack_iterator_type b)

void	copy (stack_iterator_type a, stack_iterator_type b)

void	copy (const_stack_iterator_type a, stack_iterator_type b)

void	erase (stack_iterator_type p)

void	erase (particle_interface_type p)
	delete this particle

bool	isEmpty ()
	check if there are no further non-deleted particles on stack

bool	isErased (const stack_iterator_type &p) const
	check if this particle was already deleted

bool	isErased (const const_stack_iterator_type &p) const

bool	isErased (const particle_interface_type &p) const

bool	purgeLastIfDeleted ()
	Function to ultimatively remove the last entry from the stack, if it was marked as deleted before. More...

void	purge ()
	Function to ultimatively remove all entries from the stack marked as deleted. More...

unsigned int	getSize () const

std::string	asString () const

Public Attributes
	MSecondaryProducer< TStackDataType, TParticleInterface >

	inner_stack_ {view.inner_stack_}

	projectile_index_

Protected Member Functions
template<typename... Args>
stack_view_iterator	addSecondary (stack_view_iterator &proj, const Args... v)
	Overwrite of Stack::stack_view_iterator. More...

bool	isErased (unsigned int i) const

unsigned int	getIndexFromIterator (const unsigned int vI) const
	We only want to 'see' secondaries indexed in indices_. More...

Protected Member Functions inherited from corsika::Stack< TStackDataType &, TParticleInterface, MSecondaryProducer >
value_type &	getStackData ()

const value_type &	getStackData () const

void	swap (unsigned int const a, unsigned int const b)

void	copy (unsigned int const a, unsigned int const b)

void	erase (unsigned int const i)

bool	isErased (unsigned int const i) const

void	purge (unsigned int i)
	will remove from storage the element i. More...

stack_iterator_type	addSecondary (stack_iterator_type &parent, const TArgs... v)
	increase stack size, create new particle at end of stack, related to parent particle/projectile More...

unsigned int	getIndexFromIterator (const unsigned int vI) const
	Function to perform eventual transformation from StackIterator::getIndex() to index in data stored in TStackData data_. More...

Friends
class	StackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, view_type >

class	ConstStackIteratorInterface< typename std::remove_reference< TStackDataType >::type, TParticleInterface, MSecondaryProducer, view_type >

class	ParticleBase< stack_view_iterator >

Additional Inherited Members
Protected Attributes inherited from corsika::Stack< TStackDataType &, TParticleInterface, MSecondaryProducer >
unsigned int	nDeleted_

Detailed Description

template<typename TStackDataType, template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>
class corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >

SecondaryView can only be constructed by giving a valid Projectile particle, following calls to addSecondary will populate the original Stack, but will be directly accessible via the SecondaryView, e.g.StackViewPr.

This allows to write code like

auto projectileInput = mainStack.getNextParticle();
const unsigned int nMain = mainStack.getSize();
SecondaryView<StackData, ParticleInterface> mainStackView(projectileInput);
mainStackView.addSecondary(...data...);
mainStackView.addSecondary(...data...);
mainStackView.addSecondary(...data...);
mainStackView.addSecondary(...data...);
assert(mainStackView.getSize() == 4);
assert(mainStack.getSize() = nMain+4);

All operations possible on a Stack object are also possible on a SecondaryView object. This means you can add, delete, copy, swap, iterate, etc.

Further information about implementation (for developers):* All data is stored in the original stack privided at construction time. The secondary particle (view) indices are stored in an extra std::vector of SecondaryView class 'indices_' referring to the original stack slot indices. The index of the primary projectle particle is also explicitly stored in 'projectile_index_'. StackIterator indices 'i = StackIterator::getIndex()' are referring to those numbers, where 'i==0' refers to the 'projectile_index_', and 'StackIterator::getIndex()>0' to 'indices_[i-1]', see function getIndexFromIterator.

Definition at line 64 of file SecondaryView.hpp.

Constructor & Destructor Documentation

◆ SecondaryView()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::SecondaryView	(	view_type &	view,
		stack_view_iterator &	projectile
	)

inline

Also allow to create a new View from a Projectile (stack_view_iterator on View)

Note, the view generated this way will be equivalent to the orignal view in terms of reference to the underlying data stack. It is not a "view to a view".

Definition at line 150 of file SecondaryView.hpp.

Member Function Documentation

◆ addSecondary()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

template<typename... Args>

stack_view_iterator corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::addSecondary	(	stack_view_iterator &	proj,
		const Args...	v
	)

protected

Overwrite of Stack::stack_view_iterator.

increase stack size, create new particle at end of stack, related to parent particle/projectile

This should only get internally called from a stack_view_iterator::addSecondary via ParticleBase

◆ erase()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

void corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::erase ( stack_view_iterator p )

need overwrite Stack::Delete, since we want to call SecondaryView::DeleteLast

The particle is deleted on the underlying (internal) stack. The local references in SecondaryView in indices_ must be fixed, too. The approach is to a) check if the particle 'p' is at the very end of the internal stack, b) if not: move it there by copying the last particle to the current particle location, c) remove the last particle.

◆ getIndexFromIterator()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

unsigned int corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::getIndexFromIterator ( const unsigned int vI ) const

inlineprotected

We only want to 'see' secondaries indexed in indices_.

In this function the conversion form iterator-index to stack-index is performed.

Definition at line 363 of file SecondaryView.hpp.

◆ isErased()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

bool corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::isErased ( const stack_view_iterator & p ) const

inline

check if this particle was already deleted

need to re-implement for SecondaryView since stack_view_iterator types are a bit different

Definition at line 292 of file SecondaryView.hpp.

◆ purge()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

void corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::purge ( )

Function to ultimatively remove all entries from the stack marked as deleted.

Careful: this will re-order the entries on the stack, since "gaps" in the stack are filled with entries from the back (copied).

◆ purgeLastIfDeleted()

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

bool corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::purgeLastIfDeleted ( )

Function to ultimatively remove the last entry from the stack, if it was marked as deleted before.

If this is not the case, the function will just return false and do nothing.

Member Data Documentation

◆ MSecondaryProducer< TStackDataType, TParticleInterface >

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::MSecondaryProducer< TStackDataType, TParticleInterface >

Initial value:

{stack_value_iterator{

view.inner_stack_, view.getIndexFromIterator(projectile.getIndex())}}

Definition at line 153 of file SecondaryView.hpp.

◆ projectile_index_

template<typename TStackDataType , template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>

corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >::projectile_index_

Initial value:

{view.getIndexFromIterator(projectile.getIndex())} {
      CORSIKA_LOG_TRACE("SecondaryView::SecondaryView(view, projectile)");
    }

    stack_value_iterator parent()
        const {
      return stack_value_iterator(inner_stack_, projectile_index_);
    }

    stack_value_iterator asNewParent() const {
      return stack_value_iterator(inner_stack_, projectile_index_);
    }

    stack_view_iterator getProjectile() {

      return stack_view_iterator(*this, 0);
    }

    const_stack_view_iterator getProjectile() const {

      return const_stack_view_iterator(*this, 0);
    }

    template <typename... Args>
    stack_view_iterator addSecondary(const Args... v)

Definition at line 156 of file SecondaryView.hpp.

The documentation for this class was generated from the following file:

corsika/framework/stack/SecondaryView.hpp

Public Types

Public Member Functions

Public Attributes

Protected Member Functions

Friends

Additional Inherited Members

Detailed Description

template<typename TStackDataType, template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer> class corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >

Constructor & Destructor Documentation

◆ SecondaryView()

Member Function Documentation

◆ addSecondary()

◆ erase()

◆ getIndexFromIterator()

◆ isErased()

◆ purge()

◆ purgeLastIfDeleted()

Member Data Documentation

◆ MSecondaryProducer< TStackDataType, TParticleInterface >

◆ projectile_index_

template<typename TStackDataType, template< typename > typename TParticleInterface, template< typename T1, template< class > class T2 > class MSecondaryProducer = DefaultSecondaryProducer>
class corsika::SecondaryView< TStackDataType, TParticleInterface, MSecondaryProducer >
