#include <QuantityVector.hpp>

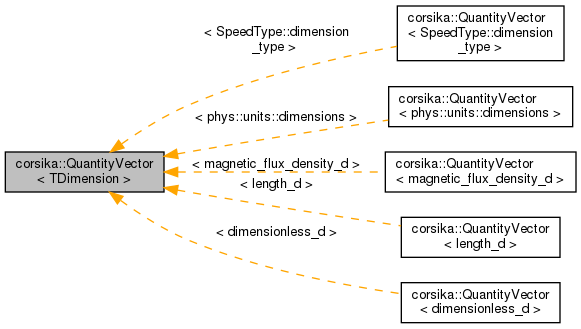

Inheritance diagram for corsika::QuantityVector< TDimension >:

[legend]

Public Types
using	quantity_type = phys::units::quantity< TDimension, double >

using	quantity_square_type = decltype(std::declval< quantity_type >() *std::declval< quantity_type >())

typedef TDimension	dimension_type
	should be a phys::units::dimension

Public Member Functions
	QuantityVector (Eigen::Vector3d const &pBareVector)

	QuantityVector (quantity_type const a, quantity_type const b, quantity_type const c)

	QuantityVector (double const a, double const b, double const c)

quantity_type	operator[] (size_t const index) const

quantity_type	getX () const

quantity_type	getY () const

quantity_type	getZ () const

Eigen::Vector3d const &	getEigenVector () const

Eigen::Vector3d &	getEigenVector ()

quantity_type	getNorm () const

quantity_square_type	getSquaredNorm () const

QuantityVector	operator+ (QuantityVector< TDimension > const &pQVec) const

QuantityVector	operator- (QuantityVector< TDimension > const &pQVec) const

template<typename TScalarDim >
auto	operator* (phys::units::quantity< TScalarDim, double > const p) const

template<typename TScalarDim >
auto	operator/ (phys::units::quantity< TScalarDim, double > const p) const

auto	operator* (double const p) const

auto	operator/ (double const p) const

auto &	operator/= (double const p)

auto &	*operator=** (double const p)

auto &	operator+= (QuantityVector< TDimension > const &pQVec)

auto &	operator-= (QuantityVector< TDimension > const &pQVec)

auto	operator- () const

auto	normalized () const

auto	operator== (QuantityVector< TDimension > const &p) const

Protected Attributes
Eigen::Vector3d	eigenVector_
	the actual container where the raw numbers are stored

Friends
class	CoordinateSystem

class	Point

template<typename T >
class	corsika::Vector

template<typename TDim >
std::ostream &	operator<< (std::ostream &os, QuantityVector< TDim > const &qv)

Detailed Description

template<typename TDimension>
class corsika::QuantityVector< TDimension >

A QuantityVector is a three-component container based on Eigen::Vector3d with a phys::units::si::dimension. Arithmethic operators are defined that propagate the dimensions by dimensional analysis.

Todo:: review QuantityVector: can this be a protected-only inheritance to other objects? We don't want to expose access to low-level Eigen objects anywhere.

Definition at line 35 of file QuantityVector.hpp.

The documentation for this class was generated from the following file:

corsika/framework/geometry/QuantityVector.hpp
