corsika::Vector< TDimension > Class Template Reference

#include <Vector.hpp>

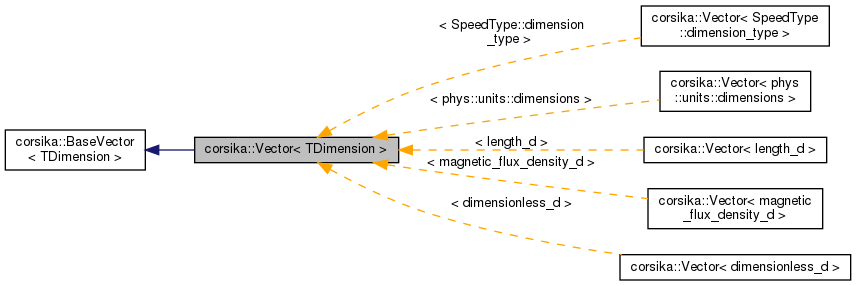

Inheritance diagram for corsika::Vector< TDimension >:

Public Types
using	quantity_type = phys::units::quantity< TDimension, double >
using	quantity_square_type = decltype(std::declval< quantity_type >() *std::declval< quantity_type >())

Public Member Functions
	Vector (CoordinateSystemPtr const &pCS, QuantityVector< TDimension > const &pQVector)
	Vector (CoordinateSystemPtr const &cs, quantity_type const x=quantity_type::zero(), quantity_type const y=quantity_type::zero(), quantity_type const z=quantity_type::zero())
QuantityVector< TDimension > const &	getComponents () const
QuantityVector< TDimension > &	getComponents ()
QuantityVector< TDimension >	getComponents (CoordinateSystemPtr const &pCS) const
QuantityVector< TDimension > &	getComponents (CoordinateSystemPtr const &pCS)
	this always returns a QuantityVector as triple More...
void	rebase (CoordinateSystemPtr const &pCS)
quantity_type	getNorm () const
quantity_square_type	getSquaredNorm () const
template<typename TDimension2 >
auto	getParallelProjectionOnto (Vector< TDimension2 > const &pVec, CoordinateSystemPtr const &pCS) const
template<typename TDimension2 >
auto	getParallelProjectionOnto (Vector< TDimension2 > const &pVec) const
Vector	operator+ (Vector< TDimension > const &pVec) const
Vector	operator- (Vector< TDimension > const &pVec) const
auto &	operator*= (double const p)
template<typename TScalarDim >
auto	operator* (phys::units::quantity< TScalarDim, double > const p) const
template<typename TScalarDim >
auto	operator/ (phys::units::quantity< TScalarDim, double > const p) const
auto	operator* (double const p) const
auto	operator/ (double const p) const
auto &	operator+= (Vector< TDimension > const &pVec)
auto &	operator-= (Vector< TDimension > const &pVec)
auto	operator- () const
auto	normalized () const
template<typename TDimension2 >
auto	cross (Vector< TDimension2 > const &pV) const
template<typename TDimension2 >
auto	dot (Vector< TDimension2 > const &pV) const
Access coordinate components
Note, if you access components in a different CoordinateSystem pCS than the stored data, internally a temporary object will be created and destroyed each call. This can be avoided by using rebase first.
quantity_type	getX (CoordinateSystemPtr const &pCS) const
quantity_type	getY (CoordinateSystemPtr const &pCS) const
quantity_type	getZ (CoordinateSystemPtr const &pCS) const
Public Member Functions inherited from corsika::BaseVector< TDimension >
	BaseVector (CoordinateSystemPtr const &pCS, QuantityVector< TDimension > const &pQVector)
	BaseVector (BaseVector const &)=default
	BaseVector (BaseVector &&a)=default
BaseVector &	operator= (BaseVector const &)=default
CoordinateSystemPtr	getCoordinateSystem () const
void	setCoordinateSystem (CoordinateSystemPtr const &cs)

Additional Inherited Members
Protected Member Functions inherited from corsika::BaseVector< TDimension >
QuantityVector< TDimension > const &	getQuantityVector () const
QuantityVector< TDimension > &	getQuantityVector ()
void	setQuantityVector (QuantityVector< TDimension > const &v)

Detailed Description

template<typename TDimension>
class corsika::Vector< TDimension >

A Vector represents a 3-vector in Euclidean space.

It is defined by components given in a specific CoordinateSystem. It has a physical dimension ("unit") as part of its type, so you cannot mix up e.g. electric with magnetic fields (but you could calculate their cross-product to get an energy flux vector).

When transforming coordinate systems, a Vector is subject to the rotational part only and invariant under translations.

Definition at line 29 of file CoordinateSystem.hpp.

Member Function Documentation

getComponents() [1/3]

template<typename TDimension>

QuantityVector<TDimension> const& corsika::Vector< TDimension >::getComponents

(

)

const

Returns

a QuantityVector with the components given in the "home" CoordinateSystem of the Vector

Todo:

this should best be protected, we don't want users to use bare coordinates without reference frame

getComponents() [2/3]

template<typename TDimension>

QuantityVector<TDimension> corsika::Vector< TDimension >::getComponents

(

CoordinateSystemPtr const &

pCS

)

const

returns a QuantityVector with the components given in an arbitrary CoordinateSystem

getComponents() [3/3]

template<typename TDimension>

QuantityVector<TDimension>& corsika::Vector< TDimension >::getComponents

(

CoordinateSystemPtr const &

pCS

)

this always returns a QuantityVector as triple

Returns

A reference type QuantityVector&, but be aware, the underlying class data is actually transformed to pCS, if needed. Thus, there may be an implicit call to rebase.

getNorm()

template<typename TDimension>

quantity_type corsika::Vector< TDimension >::getNorm

(

)

const

returns the norm/length of the Vector. Before using this method, think about whether squaredNorm() might be cheaper for your computation.

getParallelProjectionOnto()

template<typename TDimension>

template<typename TDimension2 >

auto corsika::Vector< TDimension >::getParallelProjectionOnto	(	Vector< TDimension2 > const &	pVec,
		CoordinateSystemPtr const &	pCS
	)		const

returns a Vector \( \vec{v}_{\parallel} \) which is the parallel projection of this vector \( \vec{v}_1 \) along another Vector \( \vec{v}_2 \) given by

\[ \vec{v}_{\parallel} = \frac{\vec{v}_1 \cdot \vec{v}_2}{\vec{v}_2^2} \vec{v}_2 \]

getSquaredNorm()

template<typename TDimension>

quantity_square_type corsika::Vector< TDimension >::getSquaredNorm

(

)

const

returns the squared norm of the Vector. Before using this method, think about whether norm() might be cheaper for your computation.

rebase()

template<typename TDimension>

void corsika::Vector< TDimension >::rebase

(

CoordinateSystemPtr const &

pCS

)

transforms the Vector into another CoordinateSystem by changing its components internally

---

The documentation for this class was generated from the following files:

• corsika/framework/geometry/CoordinateSystem.hpp
• corsika/framework/geometry/Vector.hpp
