corsika::CONEXhybrid< TOutputE, TOutputN > Class Template Reference

Access to the CONEX model. More...

#include <CONEXhybrid.hpp>

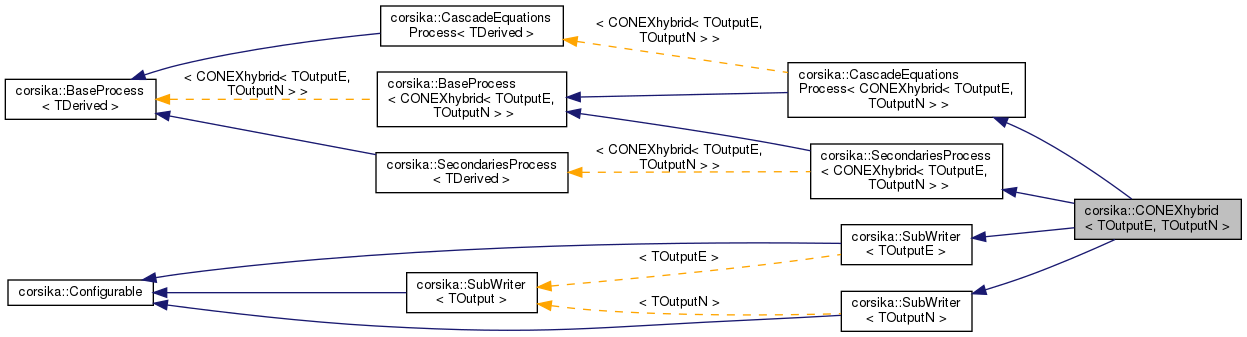

Inheritance diagram for corsika::CONEXhybrid< TOutputE, TOutputN >:

Public Member Functions
	CONEXhybrid (Point const &center, ShowerAxis const &showerAxis, LengthType groundDist, LengthType injectionHeight, HEPEnergyType primaryEnergy, PDGCode pdg, TOutputE &outputE, TOutputN &outputN)
	Constructor with output sink specified. More...
template<typename TStackView >
void	doSecondaries (TStackView &)
void	initCascadeEquations ()
	init currently needs to be called to initializa a new event. More...
template<typename TStack >
void	doCascadeEquations (TStack &stack)
	Cascade equations are solved basoned on the data in the tables.
bool	addParticle (Code pid, HEPEnergyType energy, HEPEnergyType mass, Point const &position, Vector< dimensionless_d > const &direction, TimeType t, double weight=1)
	Internal function to fill particle data inside CONEX tables. More...
CoordinateSystemPtr const &	getObserverCS () const
YAML::Node	getConfig () const final override
	Provide YAML configuration for this BaseOutput.
Public Member Functions inherited from corsika::SubWriter< TOutputE >
	SubWriter (TOutputE &output)
void	write (TArgs &&... args)
Public Member Functions inherited from corsika::SubWriter< TOutputN >
	SubWriter (TOutputN &output)
void	write (TArgs &&... args)

Additional Inherited Members
Public Types inherited from corsika::BaseProcess< CONEXhybrid< TOutputE, TOutputN > >
using	process_type = CONEXhybrid< TOutputE, TOutputN >
	Base processor type for use in other template classes.
Static Public Attributes inherited from corsika::BaseProcess< CONEXhybrid< TOutputE, TOutputN > >
static bool const	is_process_sequence
static bool const	is_switch_process_sequence
Protected Member Functions inherited from corsika::BaseProcess< CONEXhybrid< TOutputE, TOutputN > >
CONEXhybrid< TOutputE, TOutputN > &	getRef ()
const CONEXhybrid< TOutputE, TOutputN > &	getRef () const
Protected Attributes inherited from corsika::BaseProcess< CONEXhybrid< TOutputE, TOutputN > >
friend	TDerived

Detailed Description

template<typename TOutputE, typename TOutputN>
class corsika::CONEXhybrid< TOutputE, TOutputN >

Access to the CONEX model.

The fortran version of CONEX is interfaced. This is a SecondariesProcess since it skims the Stack for input particles (specific energies, or types) in order to fill internal CONEX source tables. CONEX is the called after the Cascade is finished to do a CascadeEquations step. This typically produces output data, and in addition can even generate new secondaries on the main Stack.

Note that the output is processed by SubWriter<TOutputE/N>. The SubWriters have to be initialized with valid objects of type TOutputE/N at construction time.If no output is wished, WriterOff can be used for this purpose.

Template Parameters

TOutputE	– Output writer for dEdX data.
TOutputN	– Output writer for particle number profile data.

Definition at line 53 of file CONEXhybrid.hpp.

Constructor & Destructor Documentation

CONEXhybrid()

template<typename TOutputE , typename TOutputN >

corsika::CONEXhybrid< TOutputE, TOutputN >::CONEXhybrid	(	Point const &	center,
		ShowerAxis const &	showerAxis,
		LengthType	groundDist,
		LengthType	injectionHeight,
		HEPEnergyType	primaryEnergy,
		PDGCode	pdg,
		TOutputE &	outputE,
		TOutputN &	outputN
	)

Constructor with output sink specified.

The output will be generated by the output sink.

Parameters

center	center of earth.
showerAxis	shower axis to convert geometry to grammage.
groundDist	distance to ground.
injectionHeight	height of injection.
primaryEnergy	energy of primary particle
pdg	type of primary particle.
outputE	object to initialized SubWriter<TOutputE>
outputN	object to initialized SubWriter<TOutputN>

Member Function Documentation

addParticle()

template<typename TOutputE , typename TOutputN >

bool corsika::CONEXhybrid< TOutputE, TOutputN >::addParticle	(	Code	pid,
		HEPEnergyType	energy,
		HEPEnergyType	mass,
		Point const &	position,
		Vector< dimensionless_d > const &	direction,
		TimeType	t,
		double	weight = 1
	)

Internal function to fill particle data inside CONEX tables.

Only e.m. particles are selected right now.

initCascadeEquations()

template<typename TOutputE , typename TOutputN >

void corsika::CONEXhybrid< TOutputE, TOutputN >::initCascadeEquations

(

)

init currently needs to be called to initializa a new event.

All tables are cleared, etc.

---

The documentation for this class was generated from the following file:

• corsika/modules/conex/CONEXhybrid.hpp
